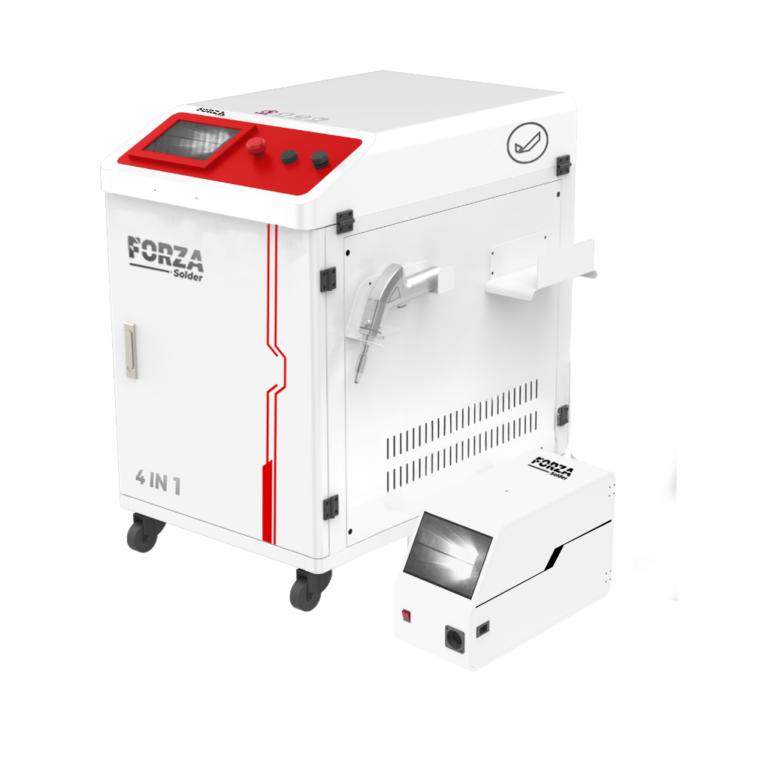

PROFESSIONAL Laser
4 in 1 welding station

FORZA SOLDER 1500W

Specifications

WELDING:

Max. thickness ASTM A36: 5/32 in
Working speed at 0.7 mm: 2 in/s
Type of working gas: Argon, N2

CUT:

Max. thickness ASTM A36: 5/64 in
Working speed at 0.7 mm: 6 in/s
Type of working gas: N2, Air

CLEANING:

Max. thickness ASTM A36: 0.1mm | 4mils of oxide.
Working speed at 0.7 mm: 4.3 in2/s oxide layer.
Type of working gas: N2, Air.

Laser system feature specifications
Feature	Welding	Cut	Cleaning
Laser Power Rating	1500W	1500W	1500W
Maximum working thickness (ASTM A36)	5/32 in	5/64 in	Oxide layer
Max working speed (at 0.7mm of A36)	2 in/s	6 in/s	4.34 in²/s
Type of permissible working gas	ARGON, NITROGEN	NITROGEN, AIR	NITROGEN, AIR
Average gas flow required	15 L/min	70 L/min	32 L/min
Type of consumer thread	Solid wire 0.8 to 1.6 mm	-	-
Interchangeable nozzles	6 types	1	-

Feature Laser Power Rating

Welding

1500W

Cut

1500W

Cleaning

1500W

Feature Maximum working thickness (ASTM A36)

Welding

5/32 in

Cut

5/64 in

Cleaning

Oxide layer

Feature Max working speed (at 0.7mm of A36)

Welding

2 in/s

Cut

6 in/s

Cleaning

4.34 in²/s

Feature Type of permissible working gas

Welding

ARGON, NITROGEN

Cut

NITROGEN, AIR

Cleaning

NITROGEN, AIR

Feature Average gas flow required

Welding

15 L/min

Cut

70 L/min

Cleaning

32 L/min

Feature Type of consumer thread

Welding

Solid wire 0.8 to 1.6 mm

Cut

Cleaning

Feature Interchangeable nozzles

Welding

6 types

Cut

Cleaning

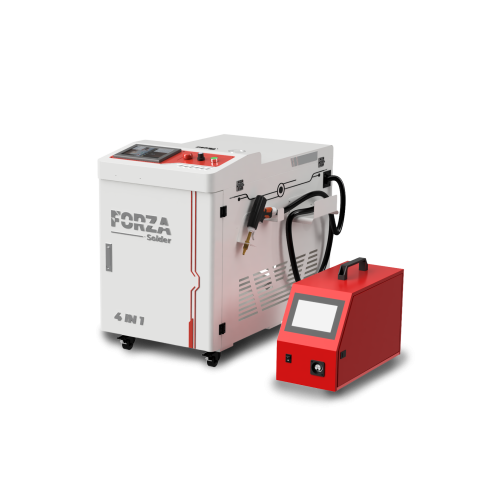

The FORZA Solder 4 in 1,
arrived to revolutionize welding.

FORZA SOLDER 4 IN 1

Can be converted into a metal laser cutter or into a cleaning gun of different areas, just by changing the nozzles and lenses.
This makes it a professional 4-in-1 gun.

REAL WARRANTY

1 YEAR

Our machine is backed up by a solid comprehensive warranty on all consumables and components.
Your investment is protected!

TECHNICAL SUPPORT

LOCAL

Satisfied customers in the United States, Canada & Mexico

supported materials

Aluminum

Stainless steel

black steel

Bronze

Brass

Galvanized steel

Your companion in the production of articles made of metal

The FORZA Solder 4 in 1 is designed to weld, cut and clean all types of steels.
In as little as 15 minutes an operator can be trained, without relying on welders.
highly qualified.
