The CNC bending machine is used to bend metal sheets, an ideal tool for bent sheet metal design. It uses computer numerical control (CNC) technology and hydraulic components for its drive.
The CNC bending machine is used to bend metal sheets, an ideal tool for bent sheet metal design. It uses computer numerical control (CNC) technology and hydraulic components for its drive, which allows complex operations to be performed with high repeatability and accuracy with low maintenance
We have a wide range of bending machines for all kinds of needs.
From smaller capacity machines to heavy-duty benders, our solutions guarantee precision and performance for any application.
| MODEL | MAX BENDING FORCE (Ton) | MAX BENDING LENGTH (ft) | CARBON STEEL (in) | STAINLESS STEEL (in) | ALUMINUM (in) |
|---|---|---|---|---|---|
| FXP25T80 | 80 | 8.2 | 3/16 | 5/32 | 7/32 |
| FXP32T80 | 80 | 10.5 | 5/32 | 5/32 | 3/16 |
| FXP25T130 | 130 | 8.2 | 7/32 | 3/16 | 9/32 |
| FXP32T130 | 130 | 10.5 | 3/16 | 3/16 | 1/4 |
| FXP25T200 | 200 | 8.2 | 9/32 | 1/4 | 5/16 |
| FXP32T200 | 200 | 10.5 | 1/4 | 7/32 | 9/32 |
| FXP32T320 | 320 | 10.5 | 1/2 | 7/16 | 19/32 |
| FXP42T320 | 320 | 13.8 | 7/16 | 13/32 | 17/32 |
| FXP60T320 | 320 | 19.7 | 3/8 | 11/32 | 15/32 |
| FXP32T400 | 400 | 10.5 | 9/16 | 1/2 | 21/32 |
| FXP42T400 | 400 | 13.8 | 1/2 | 7/16 | 19/32 |
| FXP60T400 | 400 | 19.7 | 7/16 | 3/8 | 1/2 |
| FXP32T600 | 600 | 10.5 | 21/32 | 19/32 | 13/16 |
| FXP42T600 | 600 | 13.8 | 19/32 | 17/32 | 23/32 |
| FXP60T600 | 600 | 19.7 | 1/2 | 7/16 | 7/32 |
Note: The thicknesses listed under CARBON STEEL, STAINLESS STEEL, and ALUMINUM represent the MAX BENDING THICKNESS FOR FULL LENGTH.
Specifications
Maximum bending force
From 80Ton Up to 600Ton
Main bending Lenght (ft)
From 8.2 ft Up to 19.7 ft
MAX. BENDING THICKNESSES
Carbon steel
From 3/16 in Up to 1/2
Stainless steel
From 5/32 in Up to 7/16 in
Tandem bender suitable for bending long or ultra-long sheets, with the surprising effect of 1+1>2
With the mechanization of the operation throughout the process and almost no manual intervention, it can allow a high degree of consistency between workpieces and work 24/7.
We back you up with a solid, comprehensive warranty on all consumables and components. Your investment is protected!
Technical support 7 days a week. Assistance response in 7 minutes. 24/7 technical support platform. On-site assistance in less than 24 hours.
Pre-installation visit. Delivery at your place of work. Electrical installation. Pneumatic installation.
Technical support 7 days a week.
Technical answers in 7 minutes.
24/7 technical support platform.
On-site assistance within 48 hours.
We back you up with a solid, comprehensive warranty on all consumables and components. Your investment is protected!
Pre-installation visit.
Delivery to your site.
Electrical installation.
Pneumatic installation.
The versatility of the FORZA FLEX bender adapts to a wide range of industries providing bending solutions as needed.

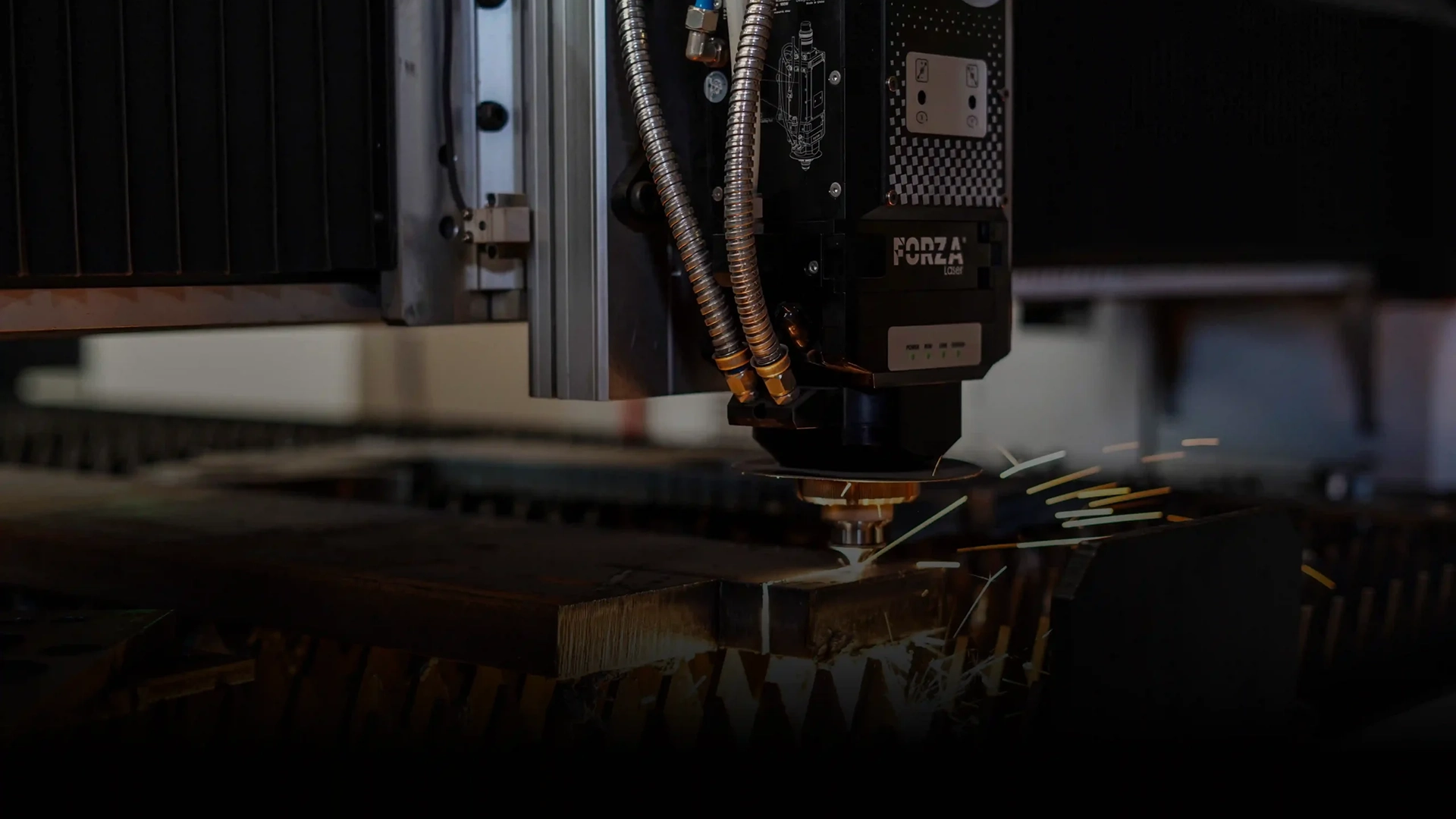

The versatility of the new FORZA ONE adapts to a wide range of industries providing laser cutting and engraving solutions for every need.
